Description

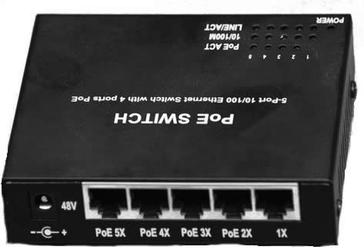

High quality 4 port Power over Ethernet switch. Provides 4 10/100 ethernet ports with up to 15.4W per port.

Details

The 4 port PoE switch is perfect if you are installing a several VIAAS cameras. It provides both extra ports and the power for the camera. 5 10/100Mbps, 4 with PoE, one uplink.

Technical Specifications

• IEEE 802.3 10Mbps Ethernet
• IEEE 802.3u 100Mbps Fast Ethernet
• IEEE 802.3x Flow Control for Full-Duplex
• IEEE 802.3af Power over Ethernet
• Number of Ports: 10/100Mbps on all five ports.
• Power Over Ethernet: from port 1 to Port 4
• 802.3af 15.4W per port and 56W Max.
• PoE power is delivered to the twist-pair pin 1,2 and pin 3,6.
• Total Power consumption: 66W max
• Power Adaptor: 100-240VAC to 48VDC 1.25A.
• PoE Power: Up to 15.4 watts max per port for all ports 1 ¨C 4. Total PoE power 56W max.

In The Box

• 4 Port PoE Switch
• Power Adapter
• Power Cord
